Example SOCKS Configuration (Telesploit Server)
Host: IP address or Fully Qualified Domain Name of target
Port: Application port
Example SOCKS Configuration (Telesploit Client)
Host: localhost (127.0.0.1)
Username: <NONE>
Password: <NONE>
Port: Assigned SOCKS port
The Telesploit server can act as a SOCKS proxy for SOCKS aware applications. For example, this service can be used to connect a database application on the Telesploit client to a database within the target environment. Unlike the other services, the SOCKS proxy does require additional configuration on the Telesploit server and is limited to a single target at a time.
From a Telesploit server console navigate to the /root/telesploit directory and run the script socks_up.sh. This allows the SOCKS proxy configuration to be modified and starts the service.
./socks_up.sh
![](https://www.telesploit.com/wp-content/uploads/2021/10/49A-other_socks.png)
The /root/.ssh/config file is opened for editing.
![](https://www.telesploit.com/wp-content/uploads/2021/10/49B-other_socks-1.png)

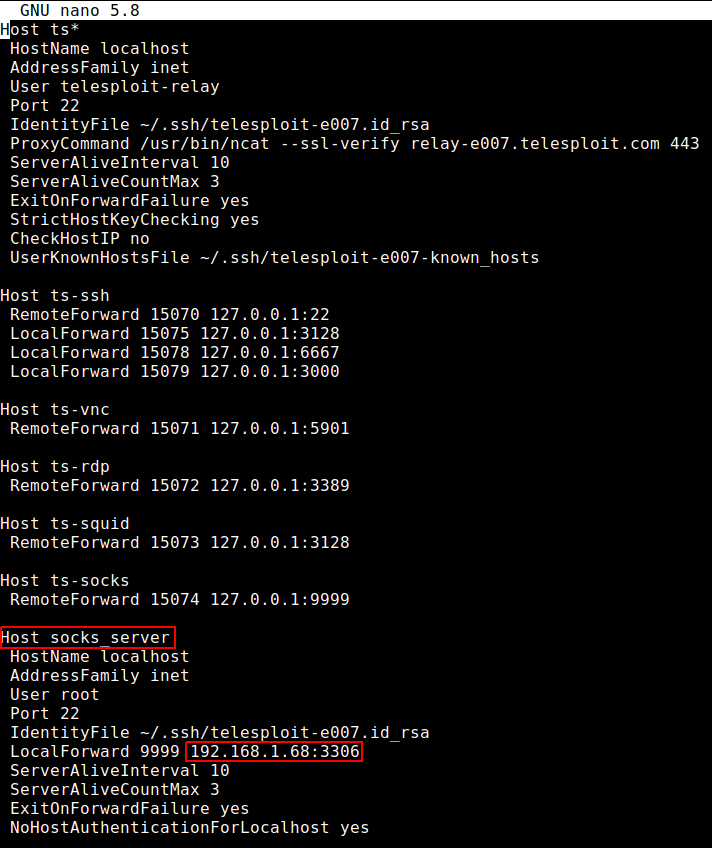

Under the “Host socks_server” section modify the IP address and port number to match the target. In the following example the SOCKS proxy traffic is forwarded to a MySQL database (port 3306) running on an internal machine that is accessible from the Telesploit server, but not directly from the Telesploit client.
![](https://www.telesploit.com/wp-content/uploads/2021/10/49C-other_socks-annotated-1.png)

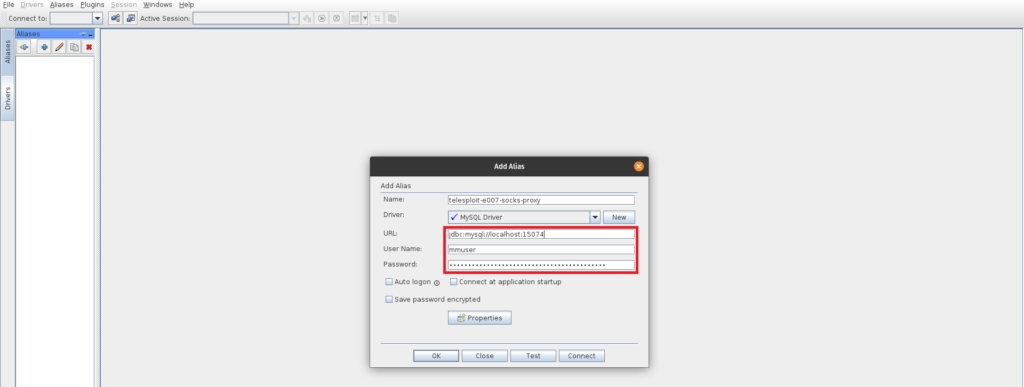

On the Telesploit client configure the application with the assigned SOCKS port. In this example a SQuirreL SQL client is used to access the MySQL database.
![](https://www.telesploit.com/wp-content/uploads/2021/10/49D-other_socks-annotated-1024x387.png)
The target can then be accessed as if the application were being run from the Telesploit server itself.
![](https://www.telesploit.com/wp-content/uploads/2021/10/49E-other_socks-1024x525.png)
Once testing is complete, the socks_down.sh script can be run to close the SOCKS proxy connection.
./socks_down.sh
![](https://www.telesploit.com/wp-content/uploads/2021/10/49F-other_socks.png)
